Shortcode Parameter Reference

TableCrafter exposes a single shortcode, [tablecrafter], that turns a JSON API, Google Sheet, CSV file, or Airtable base into an accessible, server-rendered WordPress table. This page lists every attribute the handler accepts, with its exact type, default value, and runtime behavior.

The Shortcode Tag

TableCrafter registers exactly one shortcode tag, tablecrafter, handled by the render_table() method. The same attribute set powers the native Gutenberg block (tablecrafter/data-table) and the Elementor widget, so anything documented here applies across all three integration methods.

# Minimal usage — only the source is required
[tablecrafter source="https://example.com/api/products.json"]

The source attribute accepts any public JSON endpoint, a Google Sheets share URL, a URL ending in .csv, a local file inside your WordPress install, or an airtable:// base reference. The source type is auto-detected at fetch time.

Parameter Reference

The table below is the complete, authoritative list of attributes accepted by [tablecrafter]. Defaults are the literal values the handler applies when the attribute is omitted.

How Boolean Attributes Are Parsed

Shortcode attributes always arrive as strings. TableCrafter normalizes the boolean-style attributes (search, filters, export, auto_refresh, refresh_indicator, refresh_countdown, refresh_last_updated) before use.

A value is treated as true only when it equals (case-insensitively) true, 1, or yes. Every other value, including false, 0, no, or an empty string, resolves to false.

# All three of these enable search
[tablecrafter source="..." search="true"]
[tablecrafter source="..." search="1"]
[tablecrafter source="..." search="yes"]

Selecting and Ordering Columns

Use include to whitelist columns and control their left-to-right order, or exclude to hide a few columns while keeping the rest of the source order intact.

# Show only these three columns, in this exact order
[tablecrafter source="https://example.com/users.json"
  include="name,email,role"]

# Show everything except internal fields
[tablecrafter source="https://example.com/users.json"
  exclude="internal_id,password_hash"]

Keys must match the field names in your data source exactly. Filtering happens server-side during render, so excluded columns never reach the page HTML.

Pointing at Nested JSON with root

Many APIs wrap their list of records inside an envelope object. The root attribute walks the JSON one dot-separated segment at a time until it reaches the array you want to display.

# Response: { "data": { "results": [ ...rows... ] } }
[tablecrafter source="https://api.example.com/v1/items"
  root="data.results"]

If any segment is missing, TableCrafter returns a clear "Path Error" naming the offending key (visible to administrators). If the resolved target is not an array, you will see a "Structure Error" instead.

Sorting and Pagination

Set an initial sort and a page size together for large datasets. The sort value is split on the first colon into a field and a direction; the chosen column also receives the correct aria-sort attribute for screen readers.

[tablecrafter source="https://example.com/products.json"
  sort="price:desc"
  per_page="25"
  search="true"
  export="true"]

The sort is only applied when the named column is part of the visible header set (after include/exclude are processed), so a sort on a hidden or misspelled column is safely ignored.

Live Auto-Refresh

For dashboards and live data, combine auto_refresh with the refresh display options. The interval is expressed in milliseconds.

# Refresh every 60 seconds, show a countdown
[tablecrafter source="https://api.example.com/prices.json"
  auto_refresh="true"
  refresh_interval="60000"
  refresh_countdown="true"]

Independently of this client-side refresh, TableCrafter caches the rendered HTML using a Stale-While-Revalidate strategy. The first render is fetched synchronously and cached for an hour; once the cache is older than five minutes, a background WP-Cron event re-fetches the source so the next visitor sees fresh data without waiting.

Using the Shortcode in Theme Templates

To embed a table directly in a PHP template, pass the shortcode string through do_shortcode().

echo do_shortcode('[tablecrafter source="https://example.com/data.json" search="true"]');

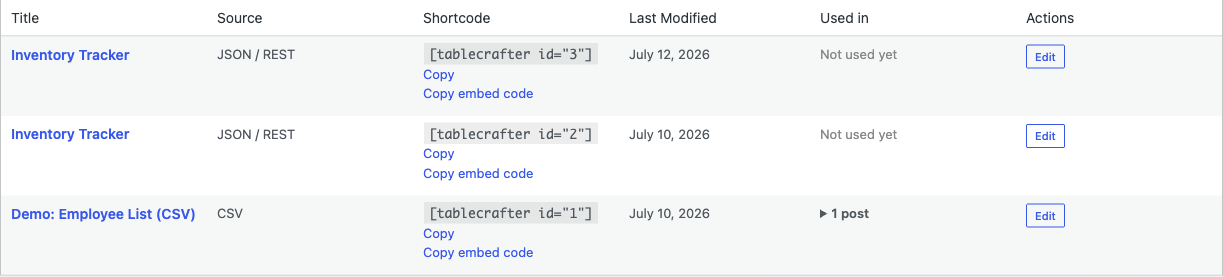

Generating Shortcodes in the Admin

You do not have to write attributes by hand. The plugin ships a visual builder in wp-admin:

1. In the WordPress sidebar, open TableCrafter (top-level menu, slug tablecrafter-wp-data-tables).
2. Enter your source URL and toggle the options you need (Search, Filters, Export, and so on).
3. Click Preview Table to verify the data and column mapping with a live preview.
4. Copy the generated [tablecrafter] shortcode and paste it into any post, page, or widget.

Next, see data-sources.html for the full list of supported source types and their URL formats, and export-handler.html for details on the CSV, XLSX, and PDF export pipeline.
